Like the fly, the car is built in four stages, with a program for each stage, ranging from extremely simple to very complex. The structure of the car remains much the same at each stage, but the programming gets progressively more interesting. The infra-red receiver is kept clear and therefore sending the program to the brick is not a problem.

Again, programming at stage one is at Pilot Level 1 and involves attaching the wire from the single motor to port A and running it for 4 seconds. The use of one motor with pulleys and cogs to drive the back wheels is very interesting in this model. The car is also much more robust than any of the cars and buggies we built this year and last.

Program sequence screenshot by kind permission of LabVIEW,a registered TradeMark of National Instruments



To the  top of the pageAlthough the programming at stage two is still a four step Pilot Level 4 template, the children wanted to try it out. Like the fly at this point, the car is controlled by a hand-held touch sensor. The children changed the run-once program to a repeat forever loop, so that they could walk with the car up and down the corridor, taking turns to start and stop it.



Program sequence screenshot by kind permission of LabVIEW,a registered TradeMark of National Instruments
Program sequence screenshot by kind permission of LabVIEW,a registered TradeMark of National Instruments
Program sequence screenshot by kind permission of LabVIEW,a registered TradeMark of National Instruments
Program sequence screenshot by kind permission of LabVIEW,a registered TradeMark of National Instruments

Stage three

Program sequence screenshot by kind permission of LabVIEW,a registered TradeMark of National Instruments

Stage four

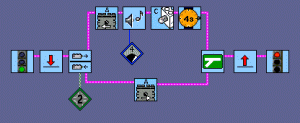

Program sequence screenshot by kind permission of LabVIEW,a registered TradeMark of National Instruments

Verdict
Another super model, with lots of scope for the children to write their own programs. Instead of the blue light, children could add headlights with perhaps a light sensor to turn them on or off. Different ways of using the touch sensor(s) to stop or turn the car could be investigated.
